Development of Future Battery Chemistry

Battery prototype evaluation equipment for coating liquid (slurry preparation) – continuous coating (desktop coating) – press-cell assembly-charge / discharge characteristic evaluation is also available.

Supplement : You can try the following three methods for the stirring device for adjusting the coating liquid. Others will be dealt with after consultation.

  1. Rotational revolution type
  2. Planetary type
  3. Thin film high-speed swivel type (Primix Corporation)

Our operator will operate and operate each equipment according to your instructions.

Battery prototype equipment that can be used

1. Slurry Making

  1. Weighing
  2. blending
  3. stirring
  4. defoaming

2. Electrode coating

Continuous coating with a width of 300 mm is possible

  • Coating method: Roll knife type
  • Coating width: Maximum width: 300 mm width
  • Coating speed: 0 to 5 m / min
  • Drying method:
    • Hot air drying at 60° C to 160° C
    • Hot air drying
    • Far infrared heating possible
  • Coating thickness: 50-500 μm thickness
  • Double-sided coating and intermittent coating are possible

3. Press

Increased filling density and improved adhesion

  • Press pressure: Maximum 15t
  • Temperature: Maximum 180 ° C
  • Roll speed: 1 to 4 m / min

4. Slitting and Notching

Measure to the specified electrode size



5. Tab welding

Welding current / holding pressure / Controllable time (tab welding)

6. Electrolyte injection

  • Sealer: Up to 300° C
  • Up to 300 x 200 mm Compatible with laminated batteries
  • Electrolyte injection under reduced pressure
  • Laminate Pouch Sealing

7. Charge/Discharge

Prototype Characteristics

Charge / discharge test

Evaluate the charge / discharge characteristics of prototype batteries and commercially available batteries (initial capacity, rate characteristics, input / output characteristics)

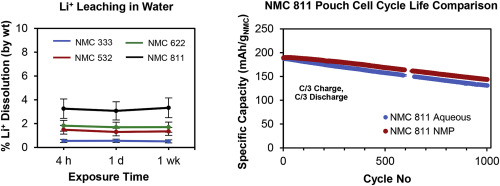

Cycle Life Characteristics

Durability is evaluated by charge / discharge cycle tests of prototype batteries and commercially available batteries. Durability evaluation by repeating charging and discharging and changing capacity

  • You can perform cycle tests of laminated laminated cells using the materials supplied by the customer.
  • You can evaluate by replacing a part of the cell member with our material.

AC impedance evaluation

AC impedance measurement is performed to evaluate basic battery characteristics and analyze the cause of deterioration.
